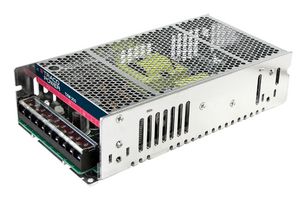

TXM 200-112

TXM 200 series is a family of 200W encased AC/DC power supplies designed for cost critical applications. It extends the existing TXM series which ranged from 15 to 150Watt with an additional 200Watt series. With a compact metal case and screw terminal block connections, they are easy to install in any equipment. They also feature an universal input and comply with EN 55032 class B and the latest IEC/UL 60950-1 edition to cover a wide range of applications. Complies with EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards. It features protection class I (prepared): connection to PE, pollution degree PD 2, overvoltage category OVC II.

• Compact 200W metal cased power supplies
• Fully convection cooled power supplies
• Cost efficient design
• High operating temperature up to 65°C
• Aluminium housing material
• Active power factor correction <gt/>0.95
• Withstand 300VAC surge input for 5s
• Adjustable output voltage, continuous automatic recovery short circuit protection
• Overcurrent limitation
• 3-year product warranty, switching frequency of 80 - 85KHz (PWM)
