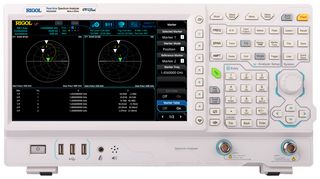

RSA3045N

RSA3045N is a RSA3000 series real-time spectrum analyser that includes TG and VNA. The RSA3000 series is a compact and light weight spectrum analyser series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45µs in duration. Engineers integrating Wi-Fi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference. The RSA3000 family features a 10.1” touchscreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production such as IoT, RFID, analogue and digital modulated signals. Embedded-System-Designer can cross trigger and analyse bus signals like IC2, SPI with RF signals.

• Frequency range from 9kHz to 4.5GHz
• Phase noise: less than -102dBc/Hz (typical), level measurement uncertainty: less than1.0dB
• Displayed average noise level as low as -161dBm with optional preamplifier
• Real-time analysis bandwidth of 10MHz standard (40MHz option)
• Frequency-mask-trigger, IF-power-level-trigger and external trigger
• 7 real-time visualization modes, 100% POI as low as 7. 45µs
• 10Hz minimum resolution bandwidth (RBW) (1Hz option)
• 1ms full span sweep speed, EMI RBW and detector standard (200Hz, 9kHz, 120kHz, 1MHz)
• USB-host, USB, LAN, GPIB interface
• Dimension is 16.14'' × 8.82'' × 5.32''

内容

Real-time spectrum analyser, Power cord, Quick guide (hard copy).
