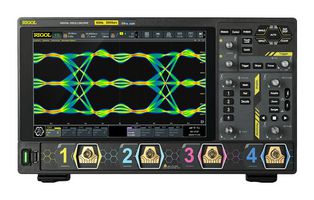

DS9204

DS9204 is a 2.5GHz, 20GSa/s, 8bit, 4-channel digital oscilloscope. It is designed to meet mainstream application needs in design, debugging, and testing. Adopting RIGOL's brand-new self-developed module, the oscilloscope achieves a fast waveform capture rate of 1,000,000wfms/s in the fast recording mode, 2Gpts memory depth, 8 to 16-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, delivering an exceptional test and measurement experience.

• Up to 4 analogue channels and 1 EXT channel, time base range: 50ps/div to 500s/div
• Vertical sensitivity range: 1mV/div to 10V/div (1Mohm), 1mV/div to 1V/div (50 ohm)
• Integrates oscilloscope, waveform generator, DVM, frequency counter, totalizer and protocol analyser
• Advanced trigger and bus decode support for serial, automotive, audio, and industrial protocols
• Search, navigation, mask testing, and zone trigger tools simplify fault detection and analysis
• Automatically measures 41 waveform parameters for fast and accurate signal characterization
• Supports compliance analysis for Ethernet, Automotive Ethernet, USB 2.0, and MIPI D-PHY
• Includes digital signal analysis, Bode plots, histograms, and other advanced analysis tools
• Multiple interfaces include USB host/device, HDMI, AUX out, LAN (LXI), and web control
• 10.1" 1280 x 800 HD touch display, dim 358 x 215 x 125mm (14.09 x 8.46 x 4.92inch)

内容

DSO, Power cord (based on destination country), RP3500A 500MHz passive probes.
