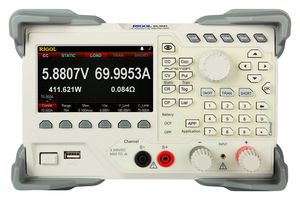

DL3041

DL3041 is a programmable DC electronic load. It is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, fuel cells, and etc.

• Single channel, DC 200V/70A, total power up to 450W
• Dynamic mode: up to 30kHz, adjustable current rising speed: 0.001A/μs to 5A/μs
• Min. readback resolution: 0.1mV，0.1mA
• FFT LCD, capable of displaying multiple parameters and states simultaneously
• Overvoltage/overcurrent/overpower/overtemperature/reverse voltage
• 4 static modes: CC, CV, CR, CP and 3 dynamic modes: continuous, pulsed, toggled
• List function supports editing as many as 512 steps
• Battery test function, OCP test, OPP test, factory test function, etc
• Short-circuit test function, power-off memory function
• Built-in RS232/USB/LAN communication interface

内容

DL3041 programmable DC electronic load, Power cord, Fuses, Shield.
