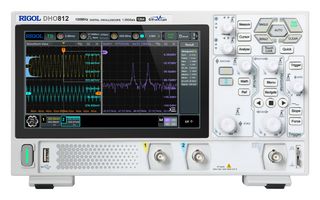

DHO812

DHO812 is a DHO800 series, 100MHz bandwidth digital oscilloscope. It is a new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands. DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope. Compact in size, the DHO800 series features a capture rate up to 1,000,000wfms/s (in UltraAcquire Mode), 25Mpts, 12bits resolution and low noise.

• Ultra-low noise floor, purer signal, never miss the small signals
• 2 analogue channels and external trigger output (std.)
• Max. real-time sample rate of 1.25GSa/s, rise time ≤3.5ns
• Vertical sensitivity range: 500μV/div to 10V/div
• Digital phosphor display with real-time 256-level intensity grading
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7" (1024x600) capacitive multi-touch screen
• Brand new Flex Knob brings user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Dimension is 10.45" (W) x 6.37" (H) x 3.05"(D)

内容

Digital oscilloscope, Power adaptor conforming to the standard of the destination country, Banana-plug ground connecting cable, Passive probe x2 (150MHz).
