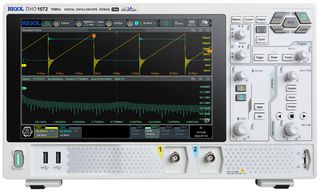

DHO1072

DHO1072 is a DHO1000 series, 70MHz bandwidth digital oscilloscope. It is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000wfms/s with the UltraAcquire mode, 100Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.

• 2 analogue channels and 1 EXT channel digital oscilloscope
• Rise time ≤5ns, up to 2GSa/s real-time sample rate
• Vertical sensitivity range from 500μV/div to 10V/div
• 10.1'' 1280x800 HD touch display
• User-friendly Flex Knobs, bringing smoother interaction
• Standard photoelectric encoder operating knobs, effectively prolonging its service life
• Standard USB device & host, LAN, and HDMI interfaces
• Power voltage range from 100 to 240V AC
• Operating temperature range from 0°C to +50°C
• Dimension is 14.1inch/358.14mm (W) x 8.45inch/214.63mm (H) x 4.74inch/120.39mm (D)

内容

Digital oscilloscope, Power cord (based on destination country), USB cable, 2 x passive HighZ probes (150MHz), standard.
