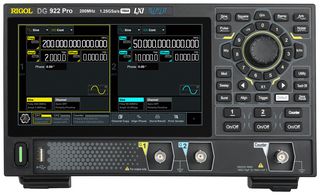

DG922 PRO

DG922 PRO is a DG900 Pro series, 2 channel, 200MHz bandwidth function/arbitrary waveform generator. It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analogue/digital modulator and counter.

• 1.25GSa/s sample rate, 16 bit vertical resolution
• Arbitrary waveform editing function with max arb waveform length of 16Mpts/CH (32Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 1GHz
• USB host, USB device and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source
• Standard web control function for easier remote cooperation
• Overvoltage protection
• 7-inch touch screen, 1024 x 600 resolution
• Dimension is 10.47" (W) x 6.49" (H) x 3.14" (D)

内容

Function/arbitrary waveform generator, Power adaptor, USB cable, BNC cable.
