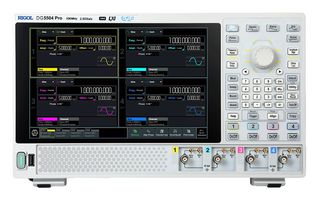

DG5504 PRO

DG5504 PRO is a DG5000 Pro series function/arbitrary waveform generator. With up to 2.5GSa/s sample rate and 64Mpts/CH memory depth (128Mpts/CH optional), the DG5000 Pro series function/arbitrary waveform generator is an all-in-one generator that integrates function generator, arbitrary waveform generator, noise generator, pulse generator, harmonics generator, and analogue/digital modulator. It is a multi-functional and cost-effective multi-channel function/arbitrary waveform generator.

• Four-channel output, isolated from the ground
• 500MHz bandwidth, 16bits vertical resolution
• Square: 170MHz maximum frequency, 0.8ns minimum rise time
• Pulse: 120MHz maximum frequency, 4.2ns minimum pulse width
• Built-in high-order harmonic generator (max. 20th order)
• Optional functions: sequence, IQ, multi-pulse, pattern, multi-tone
• 10.1'' HD touch screen allows you to configure multi-channel waveforms together from a single screen
• Standard web control function for easier remote cooperation
• LAN, web control, HDMI, USB 3.0 host, USB 3.0 device interface
• Dimension is 14.09"/357.88mm x 8.46"/214.88mm x 4.80"/121.92mm, 5U rack mount kit, 3 year warranty

内容

Function/arbitrary waveform generator, Power cord conforming to the standard of the destination country, SMB pin insertion/extraction tool, USB cable, BNC cables.
