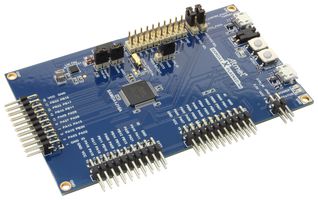

ATSAMDA1-XPRO

ATSAMDA1-XPRO is a SAM DA1 XPLAINED PRO evaluation kit. It is ideal for evaluating and prototyping with the SAM DA1 ARM® Cortex®-M0+ based microcontrollers. Extension boards to the SAM DA1 Xplained Pro can be purchased individually. The SAM DA1 Xplained Pro supports the I/O1 Xplained Pro, OLED1 Xplained Pro, QT1 and QT4 Xplained Pro and PROTO1 Xplained Pro extension boards.

• SAMDA1J16B automotive grade microcontroller
• Embedded debugger(EDBG): USB interface and programming and debugging on board SAMDA1J16A through SWD
• Virtual COM-port interface to target via UART, 4 GPIOs connected to target for code instrumentation
• EDBG: Atmel Data Gateway Interface (DGI) to target via synchronous SPI or TWI
• Digital I/O: two mechanical buttons (user and reset button), one user LED and 3 extension headers
• Sources:external power(3.3/5V), external power(12V), target USB(5V) and embedded debugger USB(5V) –
• 32kHz crystal
• USB interface, device and reduced host mode
• On-board LIN transceiver as System-Base Chip (SBC): LIN server/host configurable
• Integrated VREG regulates external VS-LIN (12V) to 3.3V

注释

ATSAMDA1-XPRO evaluation kit does not include extension boards.
