BTH3-21-15-1-B-SE

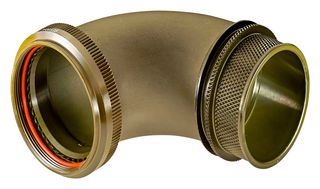

Connector Backshell, Band Strap Backshell, MIL-DTL-38999 Series III & IV Circular Connectors, 21
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoBTH3-21-15-1-B-SE
Order Code3499660
Product RangeBT
Also Known AsAAF7082-00
Your Part Number
Available to Order
register your interest here
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY2,392.400 (CNY2,703.412) |
| 5+ | CNY2,344.560 (CNY2,649.3528) |
| 10+ | CNY2,296.710 (CNY2,595.2823) |
| 25+ | CNY2,248.860 (CNY2,541.2118) |
| 50+ | CNY2,201.010 (CNY2,487.1413) |
| 100+ | CNY2,153.160 (CNY2,433.0708) |
Price for:Each
Minimum: 1
Multiple: 1
CNY2,392.40 (CNY2,703.41 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoBTH3-21-15-1-B-SE
Order Code3499660
Product RangeBT
Also Known AsAAF7082-00
Technical Datasheet
Accessory TypeBand Strap Backshell
Connector Shell Size21
Cable Exit Angle90°
Connector Body MaterialAluminium Alloy Body
Product RangeBT
SVHCCadmium (04-Feb-2026)
Product Overview
BTH3 series swept elbow backshell is designed with a smooth internal bore and a continuous bend radius. Available in the band termination (BT) style, these backshells offer up to a 20% weight savings over traditional backshells.
- Provides a smooth 900 cable termination option for optic and standard cables
- Aluminium alloy with cadmium olive drab over electroless nickel plating
- Meets AS85049 category 3B sealing requirements
- Simple and fast termination solutions
- Spin coupling nut allows for easy repair
- Backshells can provide strain relief and cable support to help prevent bending or overflexing
- Overall 360° screening against
- EMI/RFI interference
Applications
Aerospace, Defence, Military
Technical Specifications
Accessory Type
Band Strap Backshell
Connector Shell Size
21
Connector Body Material
Aluminium Alloy Body
SVHC
Cadmium (04-Feb-2026)
For Use With
MIL-DTL-38999 Series III & IV Circular Connectors
Cable Exit Angle
90°
Product Range
BT
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Cadmium (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02268
