B-155-1501
Solder Sleeve, Shrinkable, PO (Polyolefin), Transparent, ID 1.5 mm, 16 mm Long

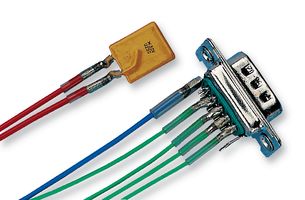

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoB-155-1501Copy
Order Code1196241
Product RangeB-155 Series
Also Known AsD61414-000
Your Part Number
11 In Stock
Need more?
11 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY3,002.330 (CNY3,392.6329) |
| 5+ | CNY2,742.530 (CNY3,099.0589) |
| 10+ | CNY2,410.880 (CNY2,724.2944) |
| 25+ | CNY2,362.670 (CNY2,669.8171) |
| 50+ | CNY2,314.450 (CNY2,615.3285) |
Price for:Pack of 500
Minimum: 1
Multiple: 1
CNY3,002.33 (CNY3,392.63 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoB-155-1501Copy
Order Code1196241
Product RangeB-155 Series
Also Known AsD61414-000
Technical Datasheet
Connector TypeTerminator
Internal Diameter1.5mm
Insulator ColourTransparent
Insulator MaterialPO (Polyolefin)
Insulator Length16mm
Wire Gauge-
Product RangeB-155 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The B-155-1501 is a transparent clear Coaxial Solder Sleeve Shield Terminator. The terminator body is made of radiation cross-linked modified polyolefin. These controlled soldering devices are designed for termination of a bare or tin-plated copper shield on a cable, having an insulation rated for at least 85°C minimum. The terminator is heat-shrinkable device.
- -55 to 125°C Temperature range
Applications
Safety, Industrial
Technical Specifications
Connector Type
Terminator
Insulator Colour
Transparent
Insulator Length
16mm
Product Range
B-155 Series
Internal Diameter
1.5mm
Insulator Material
PO (Polyolefin)
Wire Gauge
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85469010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
