R284C0351026
RF / Coaxial Cable Assembly, 19.69 ", 500 mm, RG58, BNC Straight Plug, N Type Plug, 50ohm, 50 ohm

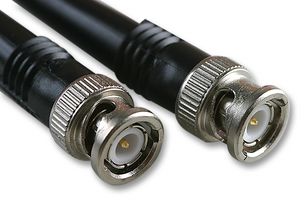

Image is for illustrative purposes only. Please refer to product description.
11 In Stock
100 more incoming. You can reserve stock now
11 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY404.820 (CNY457.4466) |
| 5+ | CNY404.630 (CNY457.2319) |
| 10+ | CNY404.440 (CNY457.0172) |
| 25+ | CNY404.240 (CNY456.7912) |
| 50+ | CNY403.410 (CNY455.8533) |
| 100+ | CNY402.230 (CNY454.5199) |
Price for:Each
Minimum: 1
Multiple: 1
CNY404.82 (CNY457.45 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRADIALL
Manufacturer Part NoR284C0351026Copy
Order Code1349837
Technical Datasheet
Cable Length - Imperial19.69"
Connector to ConnectorBNC Plug to N-Type Plug
Cable Length - Metric500mm
Coaxial Cable TypeRG58
Connector Type ABNC Straight Plug
Connector Type BN Type Plug, 50ohm
Impedance50ohm
Jacket ColourBlack
Product Range-
SVHCLead (04-Feb-2026)
Product Overview
The R284C0351026 is a 500mm black RG58 flexible RF Coaxial Cable Assembly with BNC straight plug crimp to N-type straight plug full crimp connection.
- 50 ±2Ω Characteristic impedance
- 0.55dB Maximum at 1GHz and 20°C insertion loss
- 5000MΩ Minimum insulation resistance
- 500Veff Maximum voltage
- 100-cycle Life
- DC to 1GHz Frequency range
- -35 to 70°C Operating temperature range
Applications
RF Communications
Technical Specifications
Cable Length - Imperial
19.69"
Cable Length - Metric
500mm
Connector Type A
BNC Straight Plug
Impedance
50ohm
Product Range
-
Connector to Connector
BNC Plug to N-Type Plug
Coaxial Cable Type
RG58
Connector Type B
N Type Plug, 50ohm
Jacket Colour
Black
SVHC
Lead (04-Feb-2026)
Technical Docs (2)
Alternatives for R284C0351026
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.063
