FC2004B01-FHYYBW-51SE
Alphanumeric LCD, 20 x 4, 5V, Transflective

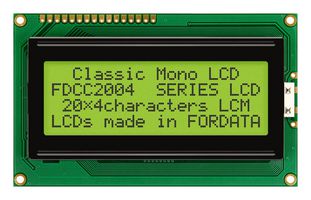

Image is for illustrative purposes only. Please refer to product description.
ManufacturerFORDATA
Manufacturer Part NoFC2004B01-FHYYBW-51SE
Order Code3565082
Also Known AsFC2004B01-FHYYBW-51SE, FC2004B01-FHYYBW-51
Your Part Number
126 In Stock
90 more incoming. You can reserve stock now
126 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY145.620 (CNY164.5506) |
| 5+ | CNY141.110 (CNY159.4543) |
| 10+ | CNY136.600 (CNY154.358) |
| 50+ | CNY129.900 (CNY146.787) |
| 100+ | CNY126.720 (CNY143.1936) |
| 250+ | CNY122.090 (CNY137.9617) |
Price for:Each
Minimum: 1
Multiple: 1
CNY145.62 (CNY164.55 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerFORDATA
Manufacturer Part NoFC2004B01-FHYYBW-51SE
Order Code3565082
Also Known AsFC2004B01-FHYYBW-51SE, FC2004B01-FHYYBW-51
Technical Datasheet
Character Count x Line20 x 4
Display Appearance-
Logic Voltage5V
Interface Type-
Font Set-
Display ModeTransflective
Character Size4.75mm
LCD Display TypeSTN
Module Size98mm x 60mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourYellow Green
Product Range-
SVHCNo SVHC (25-Jun-2020)
Product Overview
- Character LCD (Liquid Crystal Display) module
- 20 characters x 4 lines
- STN transflective, yellow/green LED backlight
- Black characters on a yellow/green background appearance
- 5V driving voltage, 16 SIL top left connection
- Operating temperature from -20°C to +70°C
- Chip on board construction
- 98.00mm x 60.0mm x 14.00mm overall size
- 76.00mm x 25.20mm viewing area
- 4.75mm character height
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Character Count x Line
20 x 4
Logic Voltage
5V
Font Set
-
Character Size
4.75mm
Module Size
98mm x 60mm
Operating Temperature Max
70°C
Backlighting Colour
Yellow Green
SVHC
No SVHC (25-Jun-2020)
Display Appearance
-
Interface Type
-
Display Mode
Transflective
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (25-Jun-2020)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.07
