2230-30-6

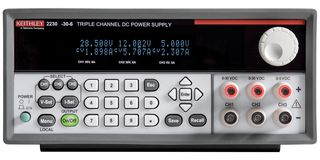

2230-30-6 is a 2230 series programmable 3-channel power supply. It provides 375W power in a space-saving 2U high, half-rack width enclosure to power automotive circuits, LED drivers, power supplies, power ICs, and other high-power circuits. It is a linear power supply with low noise, minimizing its impact on the device-under-test (DUT). Each channel has a rectangular output characteristic to enable obtaining the full current at the maximum voltage so that the 2230-30-6 can supply 30V to a 6A load.

• Two 30V, 6A channels and one 5V, 3A channel
• All channels are independently controlled and are isolated to power a wide range of test setups
• All channels have remote sensing so the programmed voltage is accurately applied to the load
• Set and monitor output voltages with 0.03% basic accuracy and 1 mV resolution
• Monitor load current with 0.1% basic accuracy and 1 mA resolution
• Low noise, linear regulation with less than 1mVrms ripple and noise
• V & I o/ps of 3 channels are displayed simultaneously for immediate observation of each output state
• USB and RS-232 interfaces and rear panel connections for automated test convenience
• Dimension is 104.2mm high x 225.3mm wide x 481.1mm deep (4.10" x 8.87" x 18.94")
• 3 year warranty

内容

Programmable 3-channel power supply, 2230G-HRM harmonic reduction module, Screw terminal block, USB cable, Line cord, Power cord, Traceable calibration certificate, Warranty.
